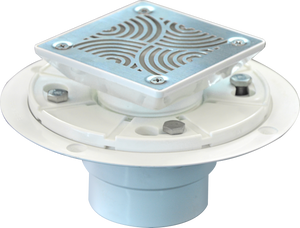

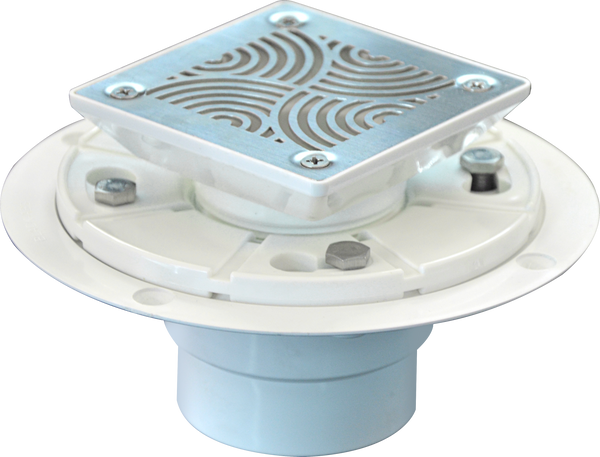

Square Shower Drain for Low Profile Shower Pan with SS304 Grating, Drain Flange PVC Material

• PVC Construction Drain Base for Shower Drains – Connecting between shower drains and drain pipes
• Inside tailpiece for 2" drains and outside tailpiece 3" drains
• Grooved collar works as weep holes while the grooved flange adapter provides a strong seal
• Easy Installation – Simply push the 2” shower drain down to the threaded adaptor.
• Code Approval: cUPC. Products are in compliance with Uniform Plumbing Code (UPC) and ASME A112.18.2-2015/CSA B125.2-15

Product Details:

4" Stainless Steel Grating. Brass female thread inserts in flange for collar screws.

Stainless steel 304 screws for tightening, anti-rust. 2" Sch 40 Hub, solvent weld conforms to ASTM D 2665 Standard.

Code Approved: cUPC approved.

2" FIP thread clamping collar, 2" MIP thread grating housing, which can be adapted to many other drain strainers on market.
